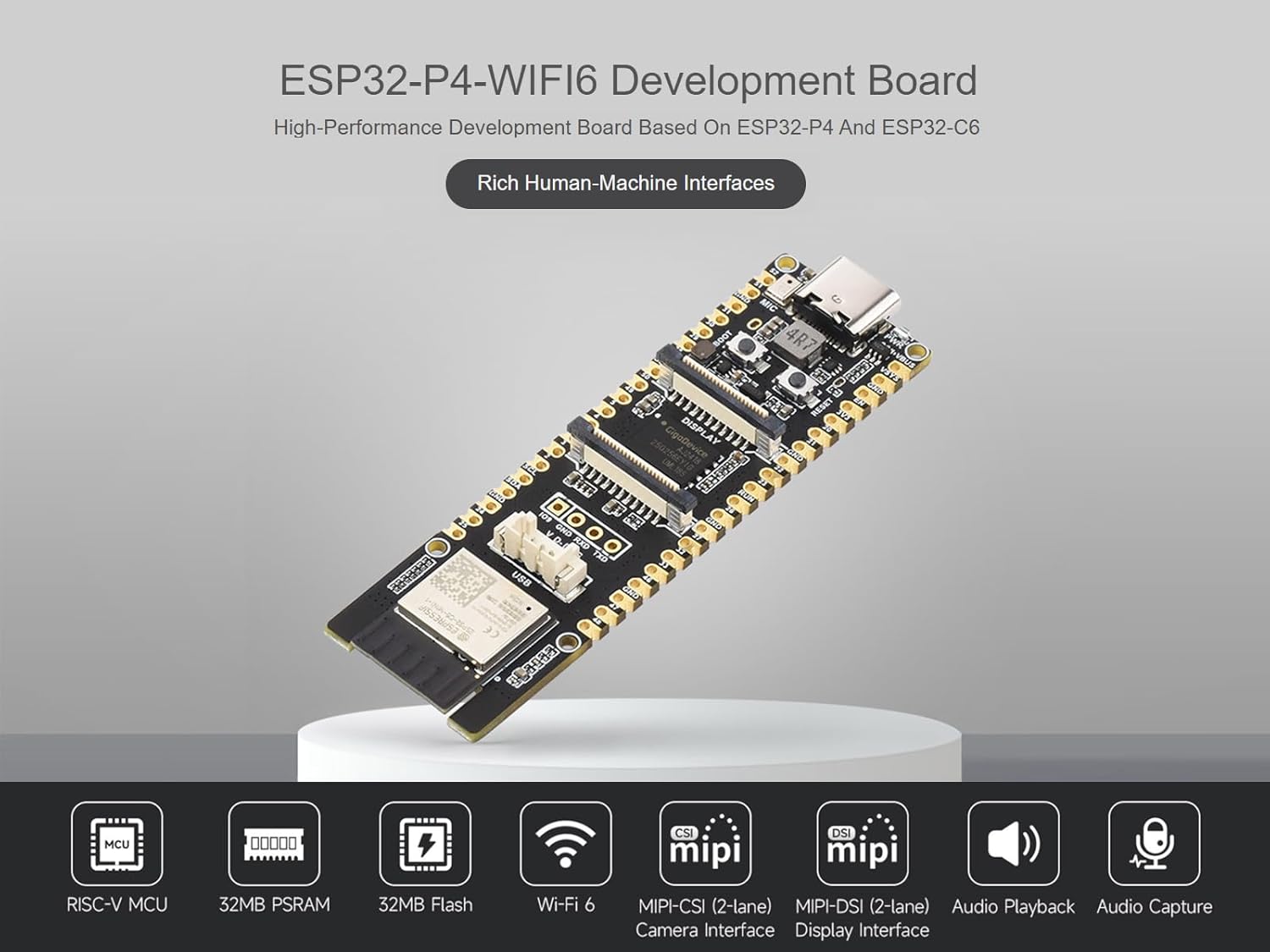

ESP32-P4-WIFI6 Development Board Adopts ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 / BLE, 32MB Nor Flash, with MIPI-CSI/DSI, USB 2.0 OTG, SDIO 3.0 TF Card Slot, Microphone, etc.

Introduction ESP32-P4-WIFI6 is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability. The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. ESP32-P4-WIFI6 meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion. Features High-performance MCU with RISC-V 32-bit dual-core and single-core processors 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM, 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc. Adtaping 2*20 GPIO headers with 27 x remaining programmable GPIOs Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation Package Content ESP32-P4-WIFI6 x1 20PIN header x2 Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.

• ESP32-P4-WIFI6 development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connectivity, featuring MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc. Rich human-machine interfaces
• High-performance MCU with RISC-V 400MHz dual-core processor + single-core processor, 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM, 32MB PSRAM integrated within the chip package, with onboard 32MB Nor Flash
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• Features 2x20 GPIO headers with 27 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms enable Access Permission Management and Privilege Separation
