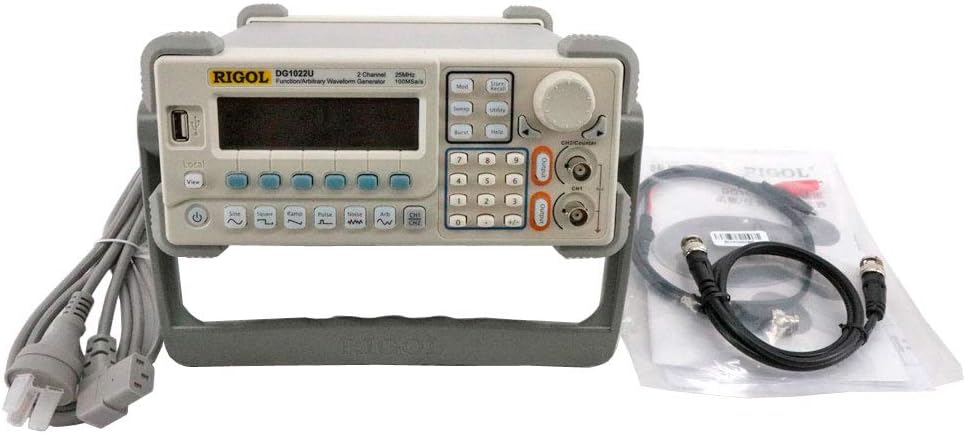

DG1022U Signal Generator 2 Channel 25 MHz Arbitrary Waveform Signal Generator Analyzer

DG1022U function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They could generate accurate, stable, clean, low distortion signals. ---Adopt advanced DDS technology; dual channel output; 100 MSa/s maximum sampling rate; 14 bits vertical accuracy Output 5 standard waveforms; built-in 48 arbitrary waveforms ---Abundant modulation functions: AM, FM, PM, FSK, linear/logarithm sweep and burst ---Abundant output and input: waveform output;synchronous signal output; external modulation source, external 10 MHz reference clock input,external trigger input ---Unique channel coupling and channel copy ---Built-in high precision and wide band counter, the measurement range: 100 mHz ~ 200 MHz (single channel) ---Standard configuration interfaces: USB Device & USB Host, and support U-disc storage ---Seamlessly interconnect with DS1000 series digital oscilloscope ---Powerful arbitrary waveform editing software“UltraWave” ---Support remote control by commands ---A variety of display modes ---Clear graphical interface ---Support Chinese and English menu and input ---Button-help makes information getting easier ---File management (support for USB flash device and local storage) Standard Configuration:DG1022U USB data cable; BNC cable; CD

• DG1022U Signal Generator with advanced DDS technology, 2 analog channels output, 25 MHz maximum output frequency
• Intuitionistic user interface, to be easy to use without specification
• DDS technology: Output signals become more accurate and stable with lower distortion
• 100 MSa/s of sample rate, 14 bits of vertical resolution, 4k points of memory depth
• 10 standard waveforms: Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sinc, Cardiac, DC
